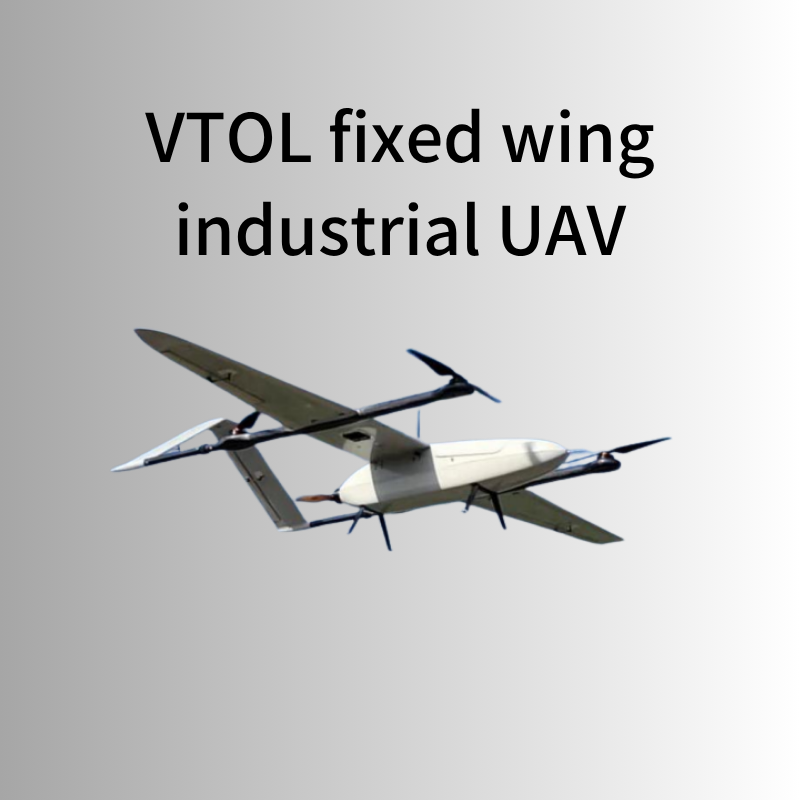

Ace – 030 VTOL fixed wing UAV is a large industrial UAV whichhas a payload of 2 kg and a flight time of up to 5 hours. Its uniquestructure enables it to be disassebled very quickly; It is equippedwith an original intelligent heating and drainage pitot and a fuselage
deicing device, which solves problems of ice blockage of pitot andicing of wings and realizes the operation under supercooled waterand high altitude and cold conditions; Even in rainy or snowy days itperfoms tasks very well. Our YL-series is competent for DGPS
taking off and landing at fixed point or mobile platform and hasexellent performance such as fully autonomous flight and accuratenavigation.
Ace – 030 proves excellent flight performance, stabletechnology and strong task-performing ability. It provides the wholeservice of flight platform tracking. With its leading innovativetechnology and enormous cost performance, Ace– 030 becomes the basic operation tool of all industries and is suitable for the whole industrial chain development of the whole industrial chain development.
Marine version: UAVACE’s mobile platform takeoff and landing system docksduijie ships to support offshore operations. Plateau version: Replace the plateau version power suit, which is suitable
Product parameters:
Wingspan: 3.8m
Fuselage length: 1.4m
Max take-off weight: 30kg
Building block design
Low noise, brushless motor
DGPS：RTK/PPK
Power engine: electric Radio link range: 30km ~ 200km
Command and control terminal:
In order to facilitate users to use our UAVs in various scenarios, UAVACE provides two forms of command and control terminal:
1. Standard hand-held remote control
Mission payload: ≤ 7kg
Pods with different fuctions can be selected according to task
Flight parameters:
Endurance: 2kg@5h Max payload: 7kg
Max flight altitude: 4500m Max takeoff altitude: 3500m (make on demand)
Gust resistance:
Take-off or lading: level 4
Cruise: level 6
Cruising speed: 80 ~ 110 km/h
Horizontal positioning accuracy:
1cm + 1ppm
Vertical positioning accuracy:
2cm
Advantages and achievable tasks:
1. Intelligent patrol
ACE- 030 VTOL UAV has outstanding advantages such as strong flight mobility, long endurance in the air and large patrol radius. With dual-light pods our UAVs are capable to patrol in remote areas and borders to lock targets and
quickly identify and classify them in different terrrains and various geomorphological areas all over the day and even under severe weather. The real-time transmission of monitoring images can improve the efficiency of patrol inspection in different industries and branches such as
energy, algriculture, forestry, water conservancy, electricity, transportation, urban construction and land management.
2. Real-time collection of image data
The image and data transmission system of ACE– 030 VTOL UAVs has excellent performance such as large data throughput, rapid random operation, high image resolution and acquisition rate, etc. It also adopts intelligent redundancy technology with simultaneous access to two
sets of independent data links, which is used for real-time flight control and 5G satellite communication links. It is suitable for remote, all-weather, real-time monitoring of complex terrain and data transmission under application scenarios such as border patrol, military control, police reconnaissance, forest protection, power patrol and group event processing.
3. Operation in plateau
The ACE-030 UAV is equipped with the “ACE-50AH intelligent heating pitot” and “fully automatic low energy consumption deicing control system” which are independently developed by our company and make the UAV adapt to environmental conditions such as supercooled water, high humidity, high– -frigid condition, winter and so on. The problem of air pressure caused by ice blockage in flight is also solved. The UAV can fly at the lowest temperature of – 35℃. Because the power system is a 4+1 full electric engine, with excellent aerodynamic performance and (12m/s) level 6 wind resistance the UAV is able to takeoff and land at an altitude of 3500m and cruise at 4500m, complete the transportation of engineering materials, disaster relief materials and medical equipment on the plateau, and the flight mission of surveying and mapping, monitoring and other engineering operations with a distance of more than 3500m.
4. Geographic information mapping
The load ratio of ACE–series UAV can reach 1/3. With the help of advanced SAR (Synthetic Aperture Radar) remote sensing radar system, high-precision and high-resolution aerial camera, full-frame camera and multi-spectral camera is this series super good for intelligent information mapping. In addition, the outstanding characteristics of the ACE–series, such as long endurance in the air, high flight accuracy, fast, efficient and flexible operation under extreme conditions and others make it possible to carry out all-weather and all-time mapping operations under complex conditions, fufill the needs of patrol inspection and information mapping in different industries such as energy, agriculture, forestry, water conservancy, electricity, transportation, urban construction, land management, etc.. At the same time, it helps to reduce costs, improve labor efficiency and bring huge benefits to the social economy.
